|Radio Control Style::||RC Hobby||Type:||Boat & Ship|
boat brushless esc,
rc boat motor esc,
OPTO BEC 12S 300A

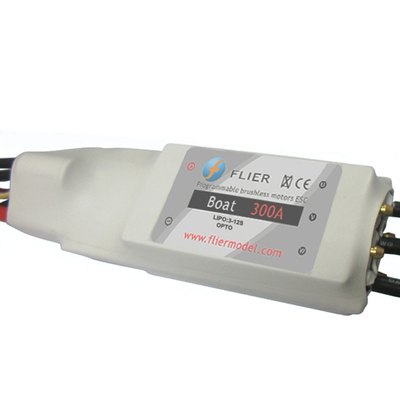

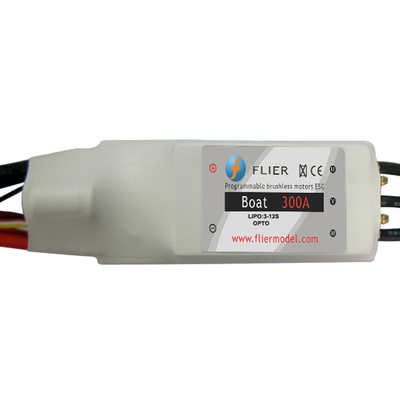

12S 300A Brushless Controller ESC with White Heat Shrink for RC Boat
|Voltage||Current||Size(mm)||weight(g)||BEC (Volts/Amps)||Box Programming support||Computer Programming support||Firmware update|
l The firmware is upgraded recently .
l Two way communication while connecting it with computer.
l Motor wire can be checked while Connecting the power battery.
l Simply set function value by Prog-Box or by PC via USB link wire.
l Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.
l Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-.4-1.0V,LiFe from2.2-2.8V
l Reverse function. the delay time of reverse is adjustable.
l The power of the motor forward/ reverse can be set.
l Automatically detection the throttle route or can be set a fixed number by manual operation.
l Auto cut off the power within 3 seconds if no radio signs.
Timing setting may be adjusted (0°-30°) to suit the motor type.
Battery voltage 1S=4.2V
The ESC firmware can be updated by the user.

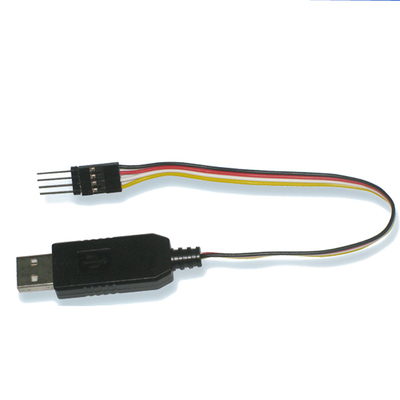

It can be connected to the programming box or connected to the computer through the USB cable, which is very convenient to set various parameters of the brushless ESC.
Single cell protection shutdown voltage, adjustable from 0.1V.
The motor advance angle is from 0 to 30 degrees and can be adjusted step by step.
The three types of throttle response curves can be set to different acceleration sensations.
With reverse function, and reverse delay time is adjustable.
With forward/reverse power limit function
Li-MH/Li-Pofrom 2.0-3.6V, Ne-Cd/Ne-0.4-1.0V, LiFefrom 2.2-2.8V.
It has automatic throttle detection and manual setting of a fixed value function.
Over temperature protection 110 ° C.
The remote control signal is automatically turned off after 3 seconds of loss.
Setting function value:
1. Reverse: On/Off.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting function value by youself.
