|Radio Control Style::||RC Hobby||Tpye:||Boat & Ship|
brushless motor esc,
brushless motor speed controller,

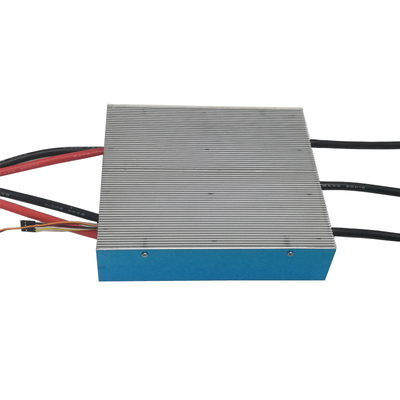

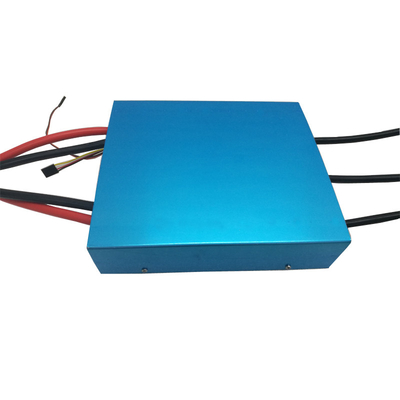

Electronic Speed Controller Brushless Quick Response
HV 120V 1000A Intelligent Brushless Controller ESC For RC Air
|Voltage||Current||Size(mm)||weight(g)||BEC (Volts/Amps)||Box Programming support||Computer Programming support||Firmware update|
1. Design for Air, more functions.
2. Battery voltage from 4S to 120V for super high voltage version.
3. Two way communication while connecting it with computer.
4. Firmware can be upgraded by user.

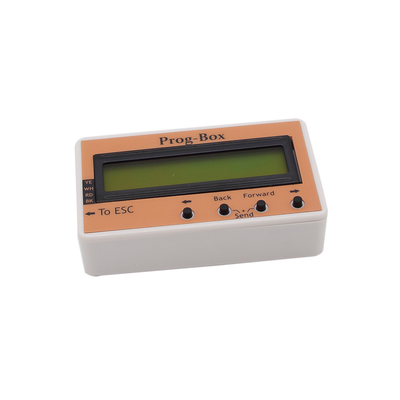

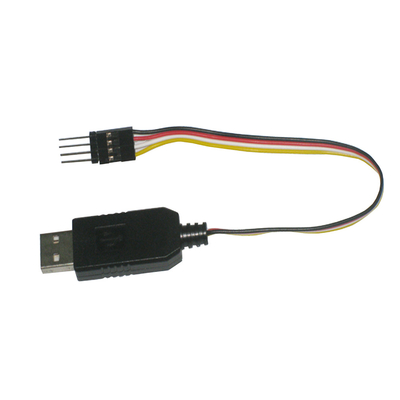

5. Simply set function value by Prog-Box or by PC via USB link wire.
6. Li-MH/Li-Po, Ne-Cd/Ne-mH, LiFe battery can be use.
7. Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages. Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V .
8. Timing settings may be adjusted (0°-30°)per degree to suit the motor type
9. 3 types of throttle curve .
10. Automatically detection the throttle range or can be set a fixed value by manual operation.
11. Auto cut off the power within 3 seconds if no radio signs.
Setting function value:
1. Reverse: On/Off.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting function value by youself.
1.Payment :T/T ,Paypal,West union .
2.Production lead time :5 days for 100-200 pcs ,10days for 200-300pcs .
3.Sample can be delivered within 3 days.
4.Discounts are offered based on order quantities .
5.MOQ: 2 pcs.
1. Items will be shipped within 3 business day after payment completed received.
2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.
3. Warranty Period is 2 yrs for this item.
4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.
5. All emails will be answered within 1 working day.
